Antistatic Calcium Sulphate Access Panel-Raised Floor

Covered panels are manufactured from a high density of calcium sulphate (approx. 1,650 kg/m³) non-toxic and non-combustible material. The top surface of the core is laminated with Anti-static High Pressure Laminate (HPL) or Conductive Vinyl (PVC) tiles and the base surface is laminated with galvanized steel sheet. The raised floor edges are then laminated with an ABS/PVC edge band which provides protection to the calcium sulphate core.

raised floor

Product Details:

ASIT Antistatic Calcium Sulphate Raised Access Panel is made of high-strength calcium sulphate(calcium silicate or cement particle board)core. The top surface is stuck with High Pressure Laminate (HPL) or PVC or ceramic, the bottom is covered with aluminum foil or galvanized steel sheet. Four edges are sealed with black PVC edge trim.

Bertasman has researched the calcium sulphate for many years,the loading capacity of this floor from Bertasman is better than any other suppliers,and the purity of calcium sulphate in the panel more than 85% which has reached the international standard.

Calcium sulphate panel make the environment friendly plant’s firbre as the reinforcement material,and then solidify the calcium sulphate crystals,and after the pulse pressing process done.has become the newest one of raised access floor,because the good furthers in environment friendly,fireproof,high loading capacity and flatness and so on.

1. Raised Floor Application

High-grade rooms, such as banks, telecommunication centers, smart offices and computer rooms. Areas of high humidity.

Raised Floor


2.

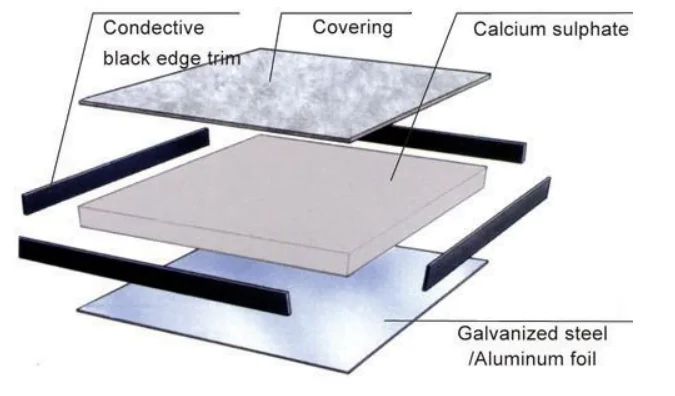

Raised Floor Structure:


1.panel- 30mm thickness calcium sulphate board ,PVC/ABS corvered four edges,steel/aluminium on the bottom plate ,wildly brand top tiles could be carpet ,HPL PVC ,ceramic stone , or other tiles as you like
2.Accessories -die casting steel structure pedestal plastic gasket on top ,height could be 70mm —1500mm , with or without square tube stringer steady connect the syste

3. Raised Floor Characteristics

  • Good loading capacity and conductivity
  • High dimension accuracy and good interchangeability
  • Good sealing and water-proof
  • Fire –proof , antisepsis and sound insulation
  • High dimension accuracy and environmental proof

Raised Floor

4. Raised Floor Technical paramter

International Size(mm) Fire

Performance

Concentrated load Impact load

(N)

Ultimated load

(N)

Uniform

Load

(N/m2)

Rolling load(N)
LB N KG 10 times 100000

times

FS800 600x600x30 A ≥800 ≥3350 ≥363 ≥536 ≥11250 ≥16100 3560 2670
FS1000 600x600x30 A ≥1000 ≥4550 ≥450 ≥670 ≥13350 ≥23000 4450 3560
FS1250 600x600x30 A ≥1250 ≥5560 ≥567 ≥780 ≥16680 ≥33000 5560 4450
FS1500 600x600x30 A ≥1500 ≥6675 ≥670 ≥1005 ≥19892 ≥34500 6675 5340

Thickness could be customised
Also called raised flooring, access flooringor elevated floor, antistatic floor is a construction model in which an elevated floor is built above a building’s original concrete slab surface, thereby creating a hidden void between the two floors that is used for the passage of mechanical and electrical services.
