HPL/PVC Access Floor

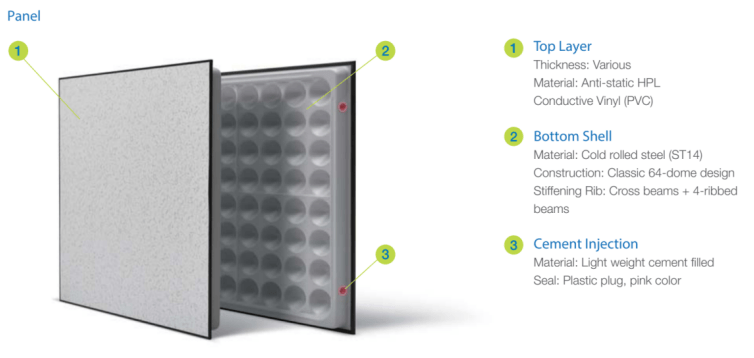

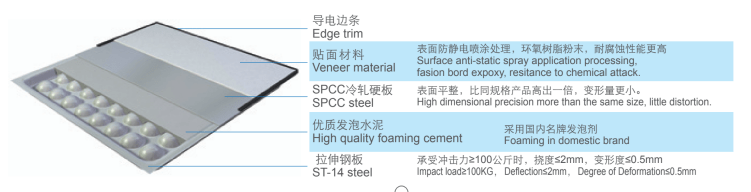

ASIT Antistatic Access Floor is made of good quality cold-rolled steel sheet with foaming cement fully filled. The surface is stuck with High Pressure Laminate (HPL) or Conductive PVC tile. The whole system is composed of floor, pedestal and stringer.

Product Details:

elevated floor

1. Elevated Floor Specifications

Prevent static vality; flame retardant, dustproof, antiskid, antirust,antisoil,resistance to chemical attack.

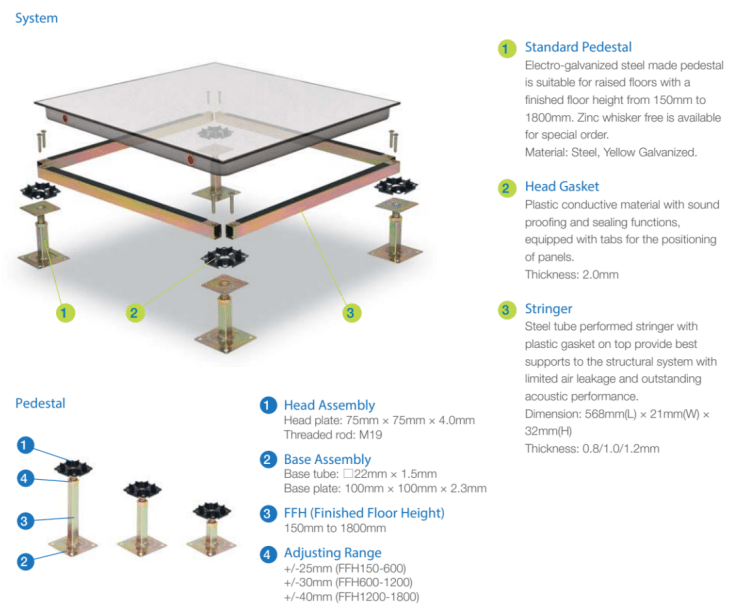

2. Steel Raised Access Floor System

  1. With wildly brand top tiles,such as HPL,PVC,ceramic marble,granite,wood ,laminate floor ,anti- static ,fireproof, wearristance.
  2. Strong loadability and shockproof.
  1. Adjustable height for pedestal , assembly agility, large wire, good exchangeability.
  2. Stringer connect ,flat pedestal , steady for the system.
  3. High recycled, convenient removing, saving cost, long performance life.

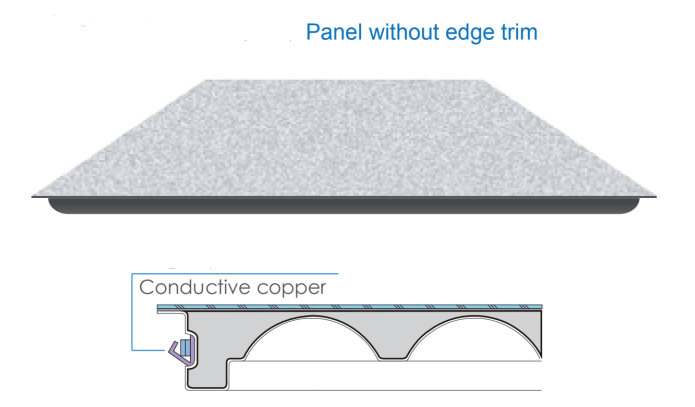

Panel without edge trim, it leaves wery tiny seam during floor installation as the panel is without edge trim. the panel can be applied to high-computer room and place where requirement on antistatic or many wires.

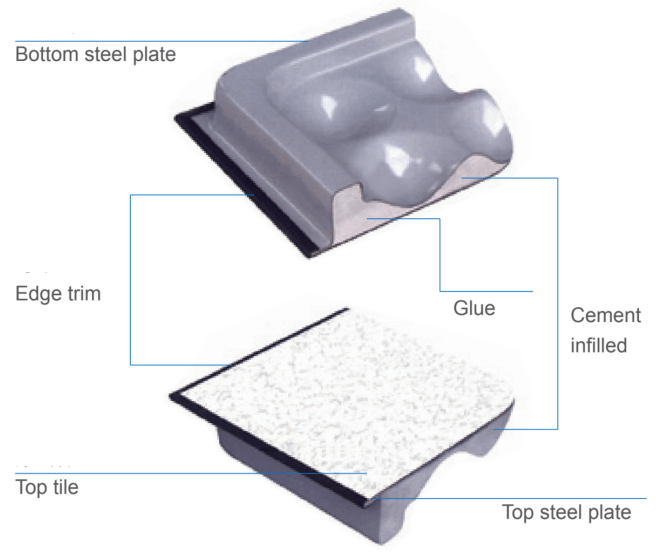

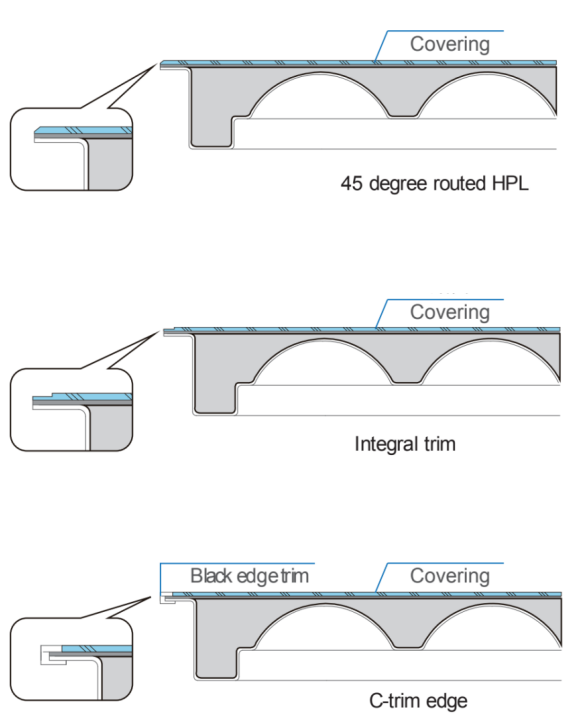

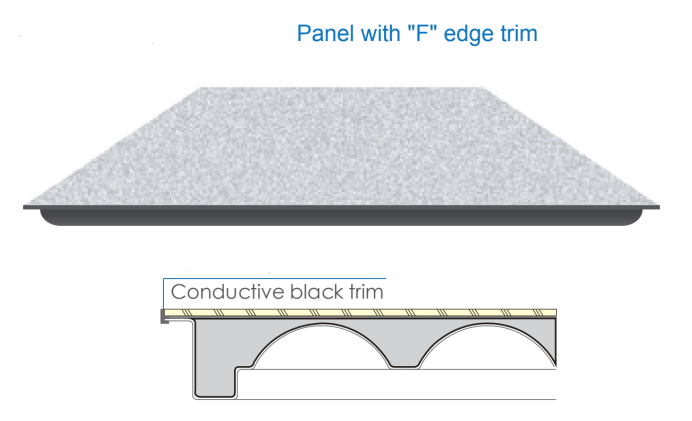

“F”edge trim is inseted in between the steel panel and the surface finish. The inserted “F”edge trim is very firm and stable. Panel with”F” edge trim creates perfect installation effect with tiny seam, which can be applied tohigh-computer room and place where requirement on antistatic or many wires.

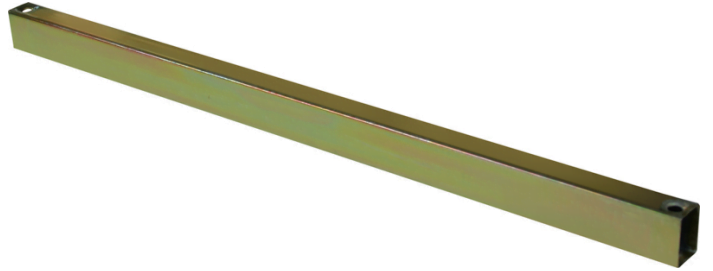

Galvanized steel pedestal & stringer

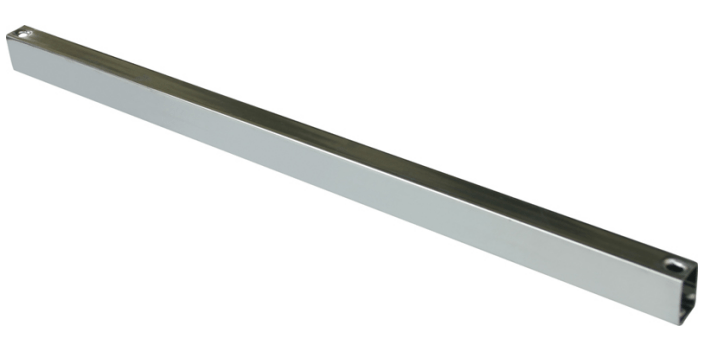

Color galvanized steel pedestal & stringer

Powder coated pedestal & stringer

3. Elevated Floor  Application

All manner of computer room, network service room monitor control center, electronic workshop, clean room, dustlessness chamber etc, and occasions which require on antistatic and air conditioning and 5 class office Security Union Plaza ,Futures Trading Building , and the place demand cabling and wiring .

  • Prevent static validly; flame retardant, dustproof, antiskid, antirust, antisoil, resistance to chemical attack.
  • Imported glue, strong wearability, non-bubble, non-degumming; painted steel body to prevent static, soft light, wearproof, artistic.
  • High dimensional precision, newly patent “cross strengthening rib” structure, super strength loading, pressurization.
  • Fix conveniently, assembly agility, bottom space could be used for air conditioning.

4. Elevated Floor Characteristics

  • Anti-static validly
  • Flame retardant, dustproof, antiskid, antirust, antisoil, resistance to chemical attack
  • Imported glue, strong wearability, non-bubble, non-degumming
  • Excellent rolling load & ultimate load performance
  • Light weight cement fill makes panels solid and quiet
  • Completely noncombustible
  • Black electrodeposition cathodic epoxy paint finish for life time protection
  • Class A flame spread and smoke development rating

5. Elevated Floor Type& Technology parameter

International Size(mm) Fire Performance Concentrated load Impact

load

(N)

Ultimated

load

(N)

Uniform Load

(N/m2)

Rolling load(N)
LB N KG 10 times 100000

times

FS440 600x600x35 A 440 1960 200 295 5880 9272 1958 1566
FS662 600x600x35 A 662 2950 301 445 8850 1250 2946 2356
FS800 600x600x35 A 800 3350 363 536 11250 16100 3560 2670
FS1000 600x600x35 A 1000 4550 450 670 13350 23000 4450 3560
FS1250 600x600x35 A 1250 5560 567 780 16680 33000 5560 4450
FS1500 600x600x35 A 1500 6675 670 1005 19892 34500 6675 5340
FS2000 600x600x35 A 2000 8900 906 1340 26700 46000 8900 7120

6.Remark:

Surface resistance range, tile could be HPL or PVC. Deflection≤2mm, mounting height 100~300mm, other height could be customised.



7.Standard Pedestal SPEC:

  FFH(mm) tube diameter(mm) adjustment +(mm) adjustment – (mm)
≤600 25 20 10
700~900 32 20 10
1000~1500 45 20 10

Other height could be customized.

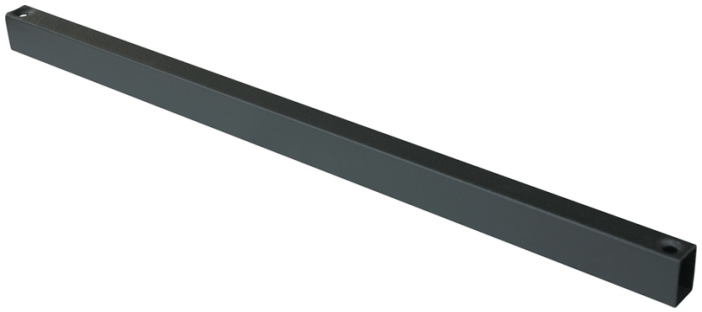

Standard Stringer SPEC: 570x21x32mm
