Aluminum Perforated Panel

ASIT Aluminum Perforated Panel provides all the features and available options of solid panel with the addition of either 1024 or 1280 chamfered holes to provide a nominal 18-33.77% open area in a non-directional pattern for airflow requirements in both computer rooms and cleanrooms. Completely interchangeable with solid and grating panels.
Aluminum shied panel is die-casted by pure alumiium ingot.It is anti-corrosion and high strength.This panel can be epoxy powder coated or nickel chrome plated. Both finish makes the panel gentle glow, anti-corrosion and anti-wear.

Product Details:

1.Aluminum Perforated Panel Description:

1.  The best base material of the raised floor , 100% recycled
2.  Full aluminium ,die casing ,top with HPL / PVC,excellent antistatic
3.  light and high loading capacity High dimensional precision

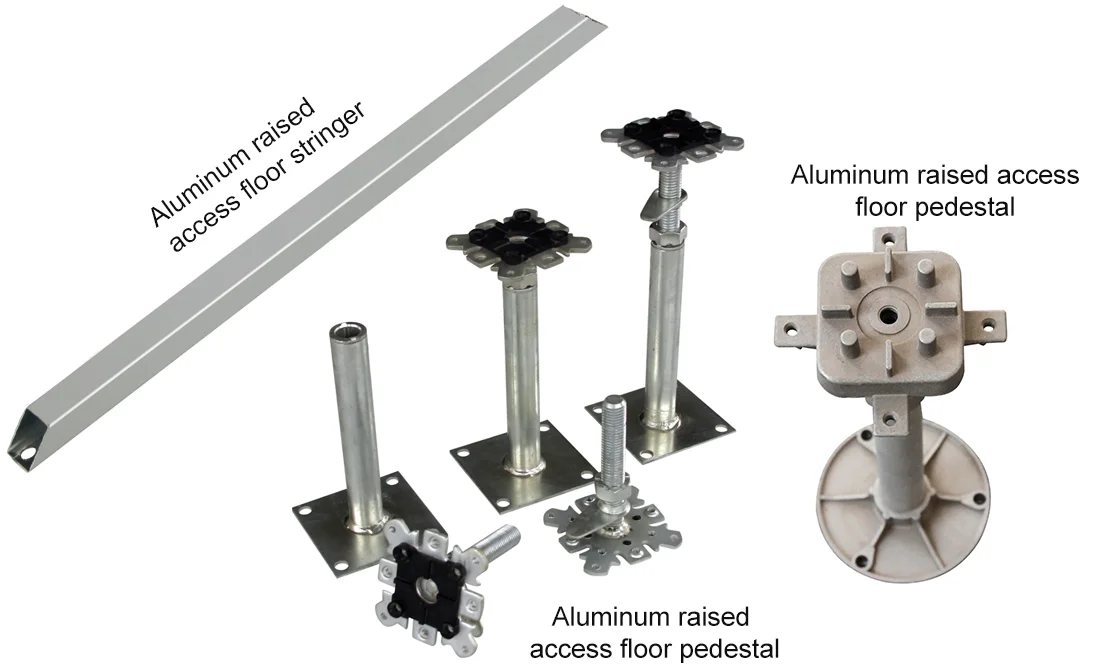

4.  Adjustable height for pedestal , assembly agility, large wire, good exchangeability.
5.  convenient removing,long performance life.
6.  Air-flow panel suitable 15%–55%ventilation

Aluminum Perforated Panel

2. Aluminum Perforated Panel Characteristics:

1.Existing solid panels can be refitted to perforated panels by applying 2.Ventilation openings with standard drilling equipment
3.Manufactured with the highest precision
4.Class A1 building material (Non-combustible)
5.Precisely drilled holes with chamfered edges
6.New original design with high dimension accuracy.
7.Light weight, high density and good loading capacity
8.Waterproof, fireproof, anti-corrosion, anti-magnetic, environment friendly and non-radiation.
9.Stable structure and never deflects, good conductivity.
10.Recycleable and economical

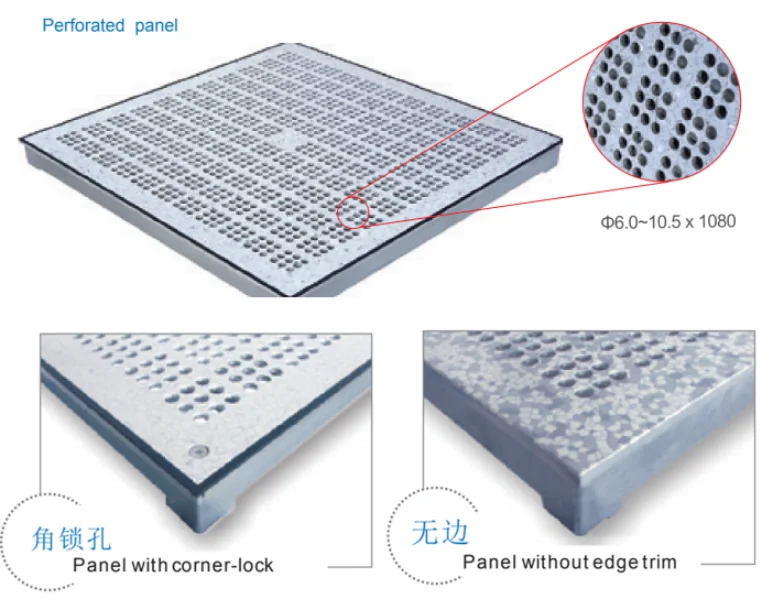

Perforated panel
AIST Aluminum Perforated panel is the industry’s only air flow panel that allows adjustment in thickness to sit flush with the adjacent solid panels. The JYP Series has a free area of 10%~25% and comes with or without sliding dampers.

3.Aluminum Perforated Panel Application

Wide range All manner of computer room, network service room monitor control center, electronic workshop, clean room, dustlessness chamber etc, and occasions which require on antistatic and air conditioning.

Aluminum Perforated Panel

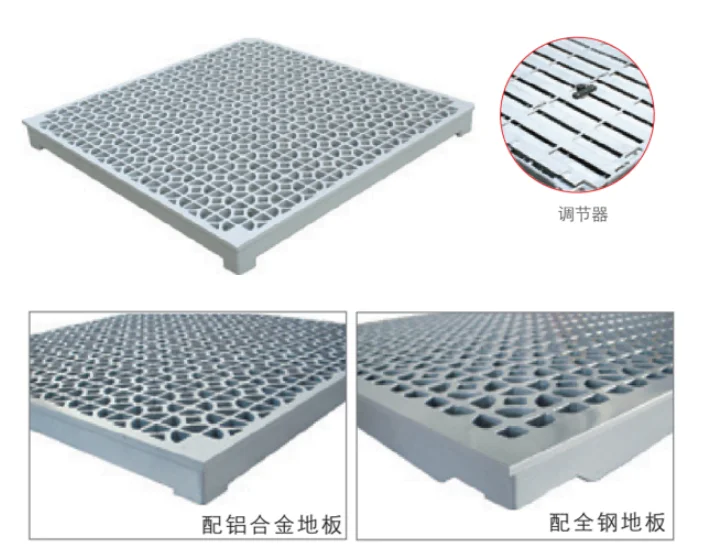

50% Aluminum Grating panel is widely used in clean rooms(e.g.top class air clean laboratory, semi-conductor work- shops andoperation rooms in hospital.)

4.Covering Finishes:

●PVC
●HPL
●Epoxy coating
●Ni-Cr plating

Aluminium perforated panel(55%)
This aluminum panel is designed to take heavy load and ventilation rate is as high as 55%. Sliding damper can be installed to the bottom the panel to meet air flow rate requirement of 0-55%. This panel could be installed with any of anti-static steel raised floor, anti-static calcium sulphate raised floor,high-density woodcore raised floor and aluminum raised floor.

5.Technical paramter

International Size(mm) Fire

Performance

Concentrated load Impact load

(N)

Ultimated load

(N)

Uniform

Load

(N/m2)

Rolling load(N)
LB N KG 10 times 100000

times

FS1000 600x600x40 A ≥1000 ≥4550 ≥450 ≥670 ≥13350 ≥23000 4450 3560
FS1250 600x600x40 A ≥1250 ≥5560 ≥567 ≥780 ≥16680 ≥33000 5560 4450
FS1500 600x600x40 A ≥1500 ≥6675 ≥670 ≥1005 ≥19892 ≥34500 6675 5340
FS2000 600x600x40 A ≥2000 ≥8900 ≥906 ≥1340 ≥26700 ≥46000 8900 8000
